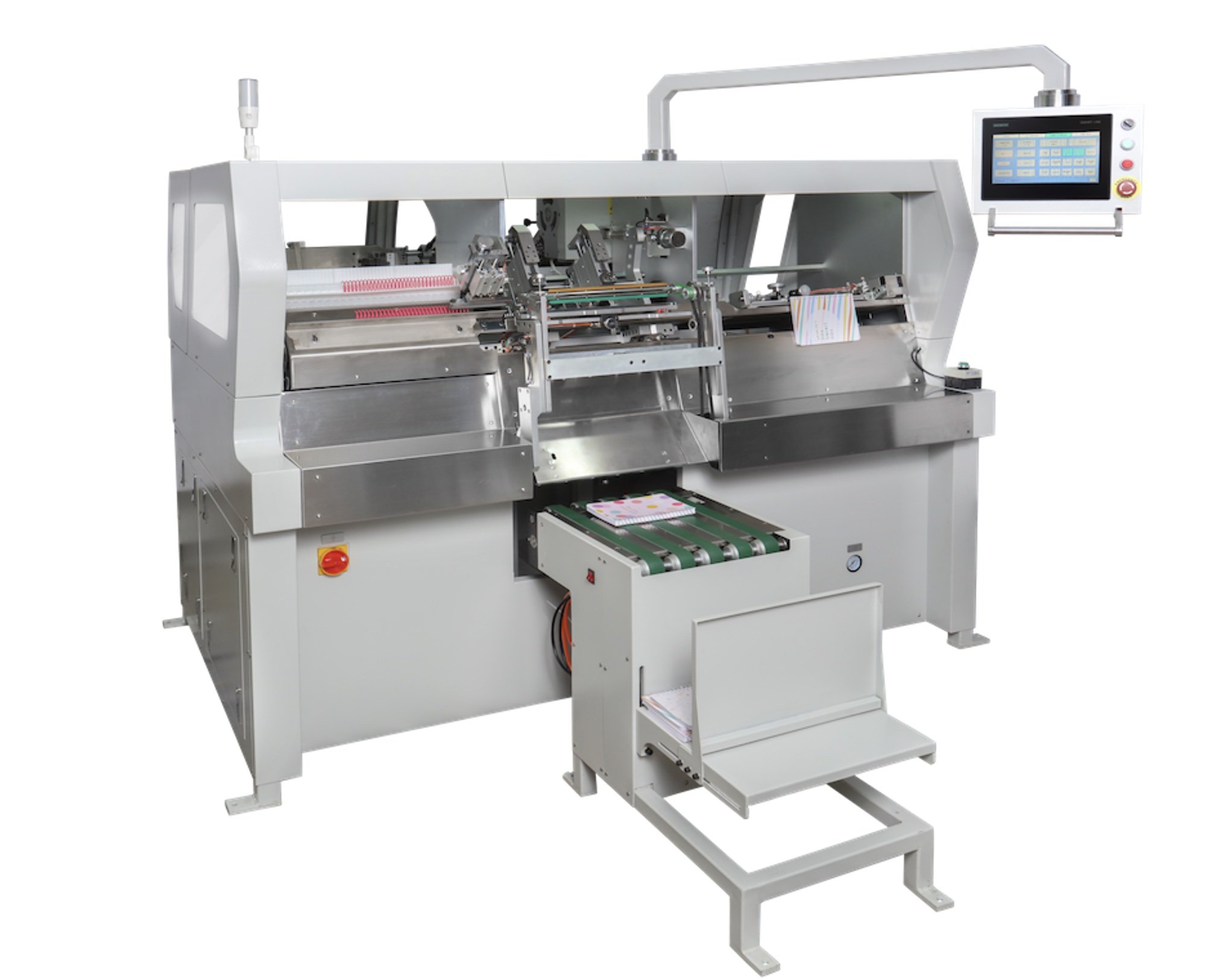

The LENCOIL-PS420 plastic coil forming and binding machine is a perfect machine for printing shops to produce a variety of book sizes and thicknesses that require plastic coil binding.

TECHNICAL DETAILS

Speed : Up to 800 books per hour

Air pressure : 5-8 kgf

Plastic coil diameter : Min 8 and max 28mm (currently 2025 year dec

Hole pitch suggested

standard configuration

Thin book 6.35 (4:1 pitch )

Thicker book 8.47 (3:1 pitch )

Max size of paper : Binding side 420mm x 300 mm

Min size of paper : Binding side 72mm x 72mm

Max book thickness : 23mm-24mm (currently )

Electric power : 3ph 380V ,8KW

Max punch edge size :580mm

Max bind edge size : 580mm
