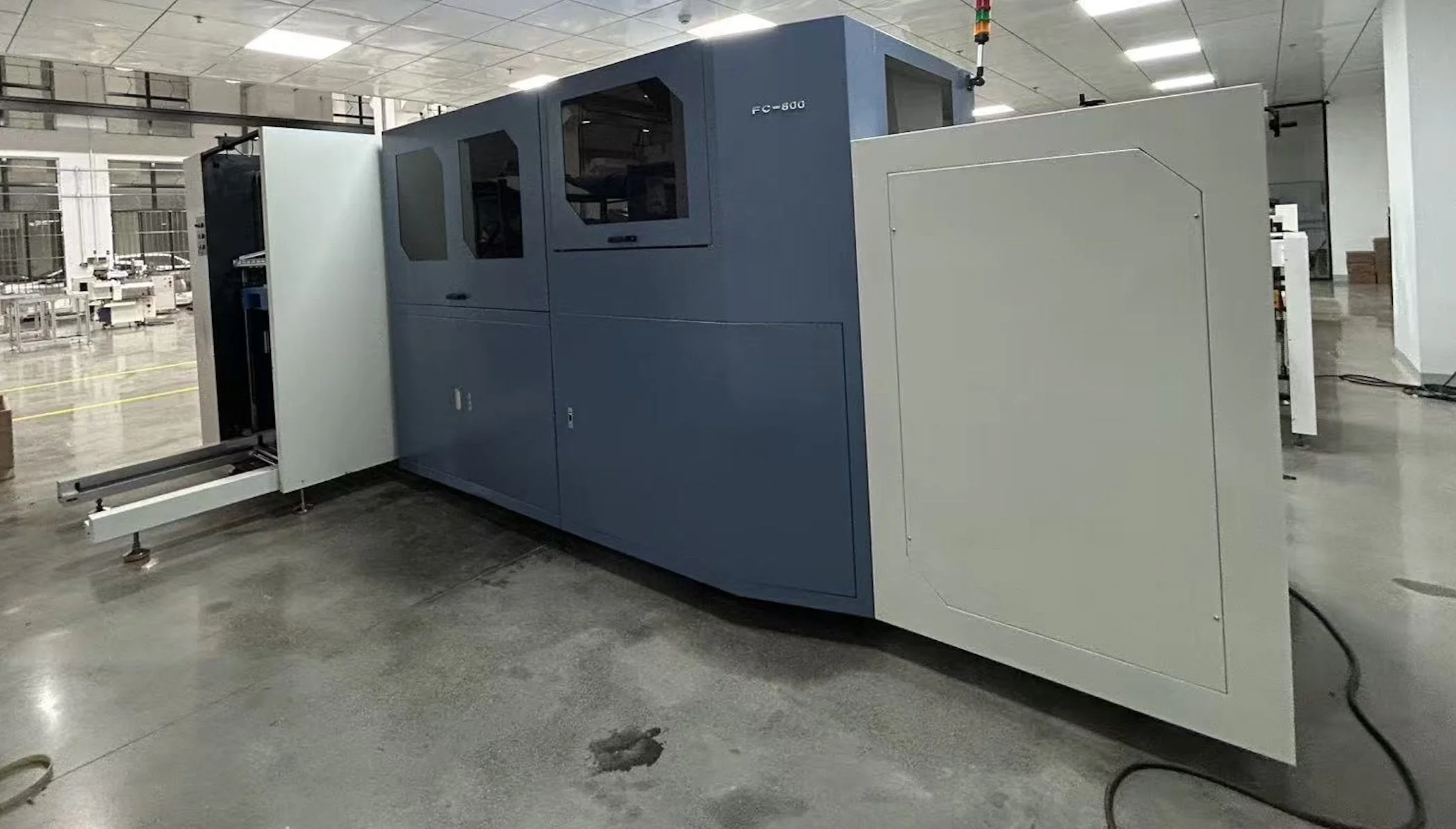

DIE-CUTTING & STRIPPING MACHINE
DIE-CUTTING & STRIPPING MACHINE

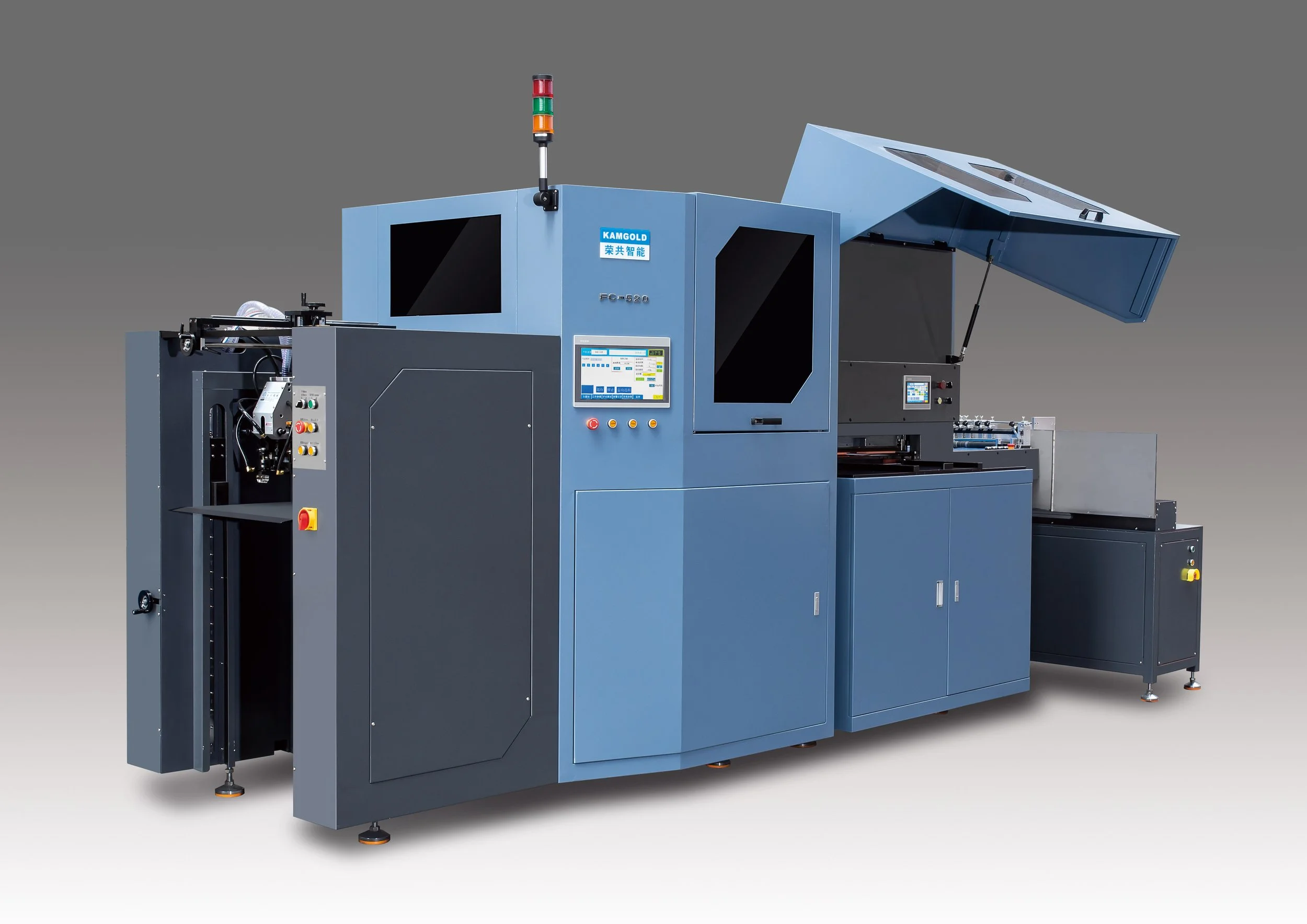

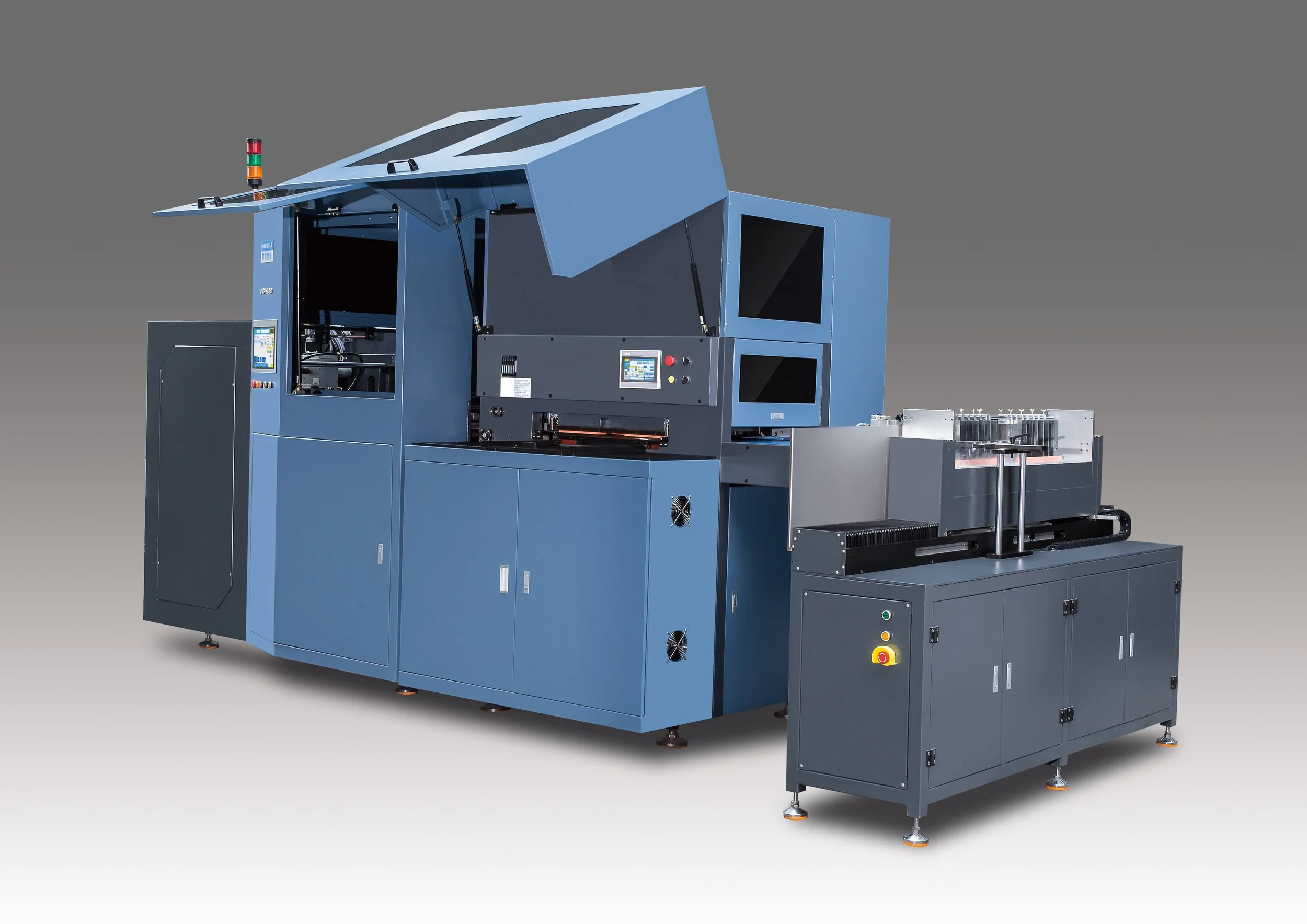

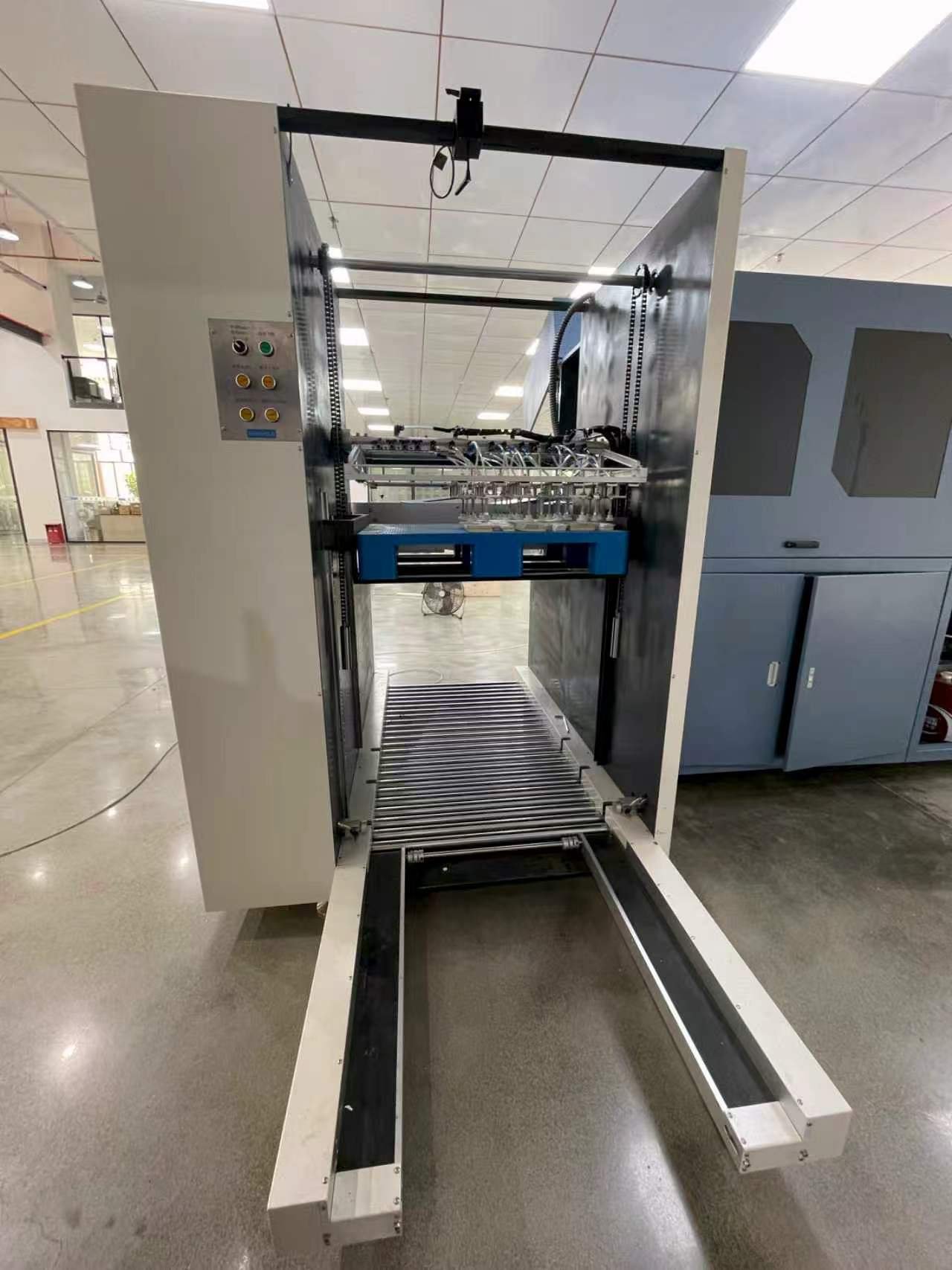

LEN-FC series machines are mainly designed for paper boxes & hangtags. Automatic creasing, die cutting, waste discharging, hole cleaning and counting by one time. Using electric pull gauge, servo feeding system. The front, rear, left, and right die cutting positions can be adjusted through the touch screen. Short exchange time. There are two options of material collections to choose: belt stacking and module rapid collection .It could greatly save manpower and improve work efficiency.
Make it stand out.
TECHNICAL DETAILS ;
MAX SHEET SIZE : 520mm X 620 mm -
600 mm X 800 mm
MIN SHEET SIZE : 300mm X 300mm
MIN SIZE OF FINISHED PRODUCT : 32 mm X 35 mm
PAPER THICKNESS; 0.2 MM – 1.2 MM
MAX SPEED: 4000 psc/ Hour

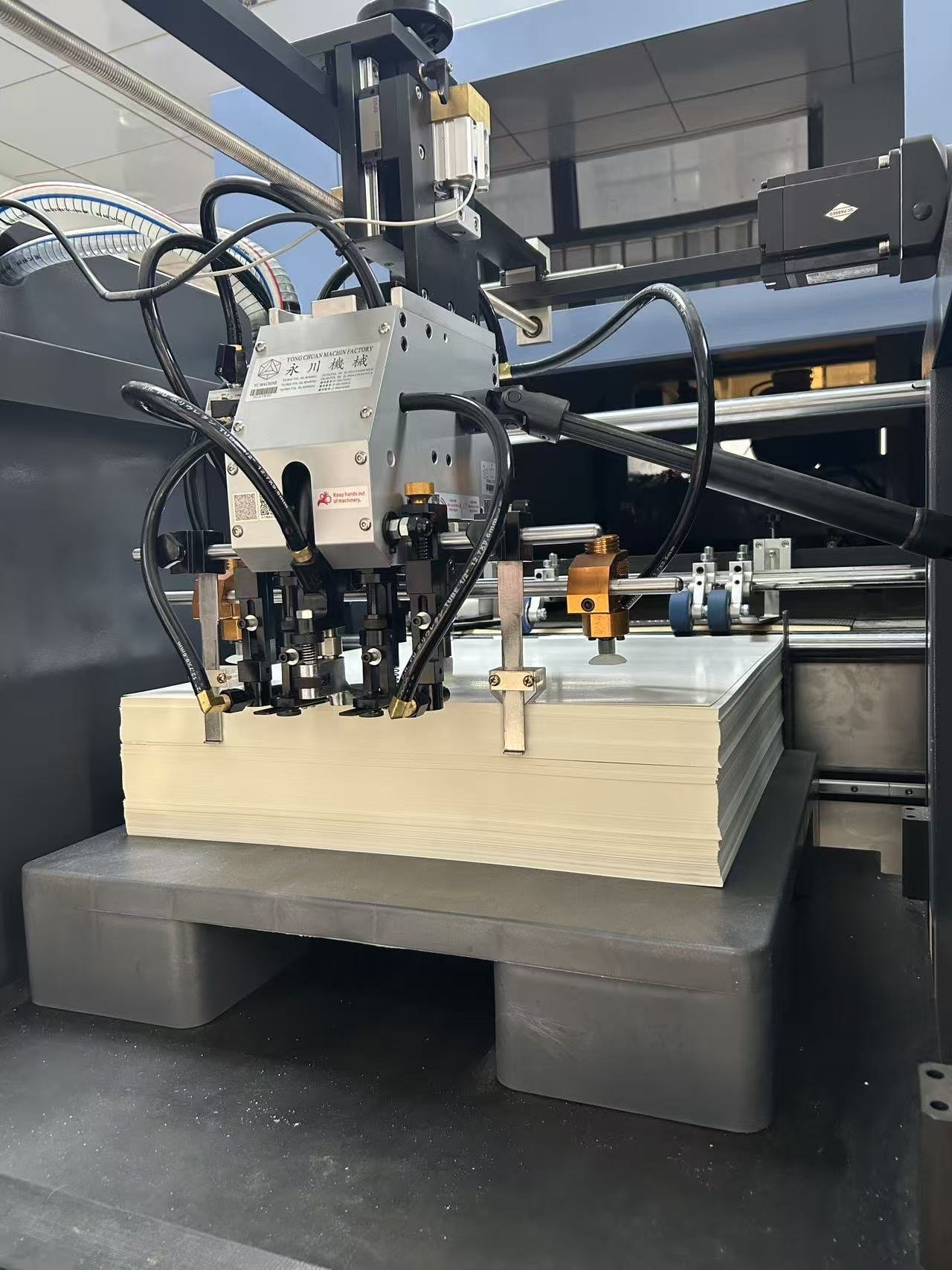

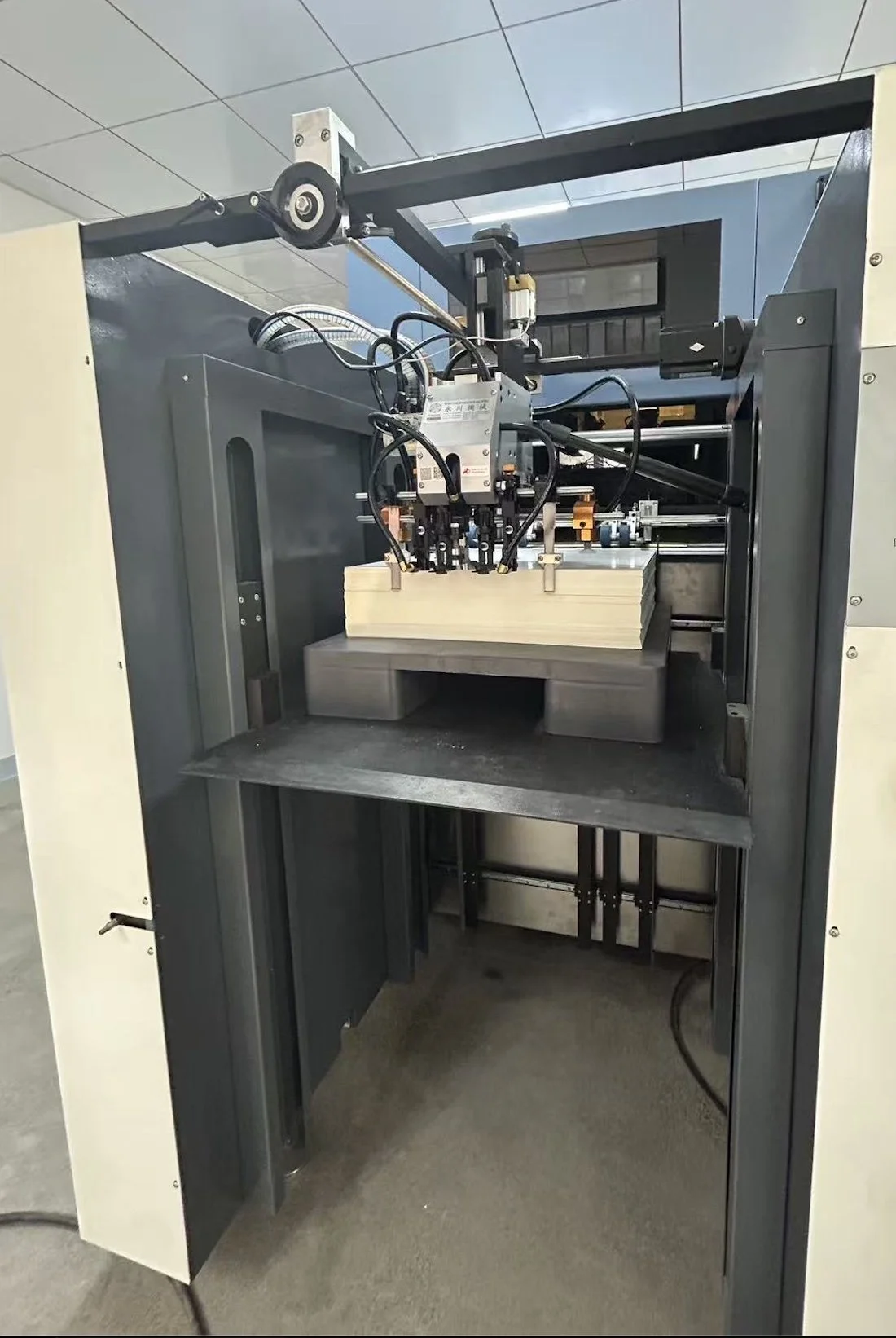

Mabeg Type Servo Feeder
DIE CUTTING ACCURACY : 0.2 MM +-
MIN DISCHARCE WIDTH : 4 MM
PRESSURE : 150 TONE

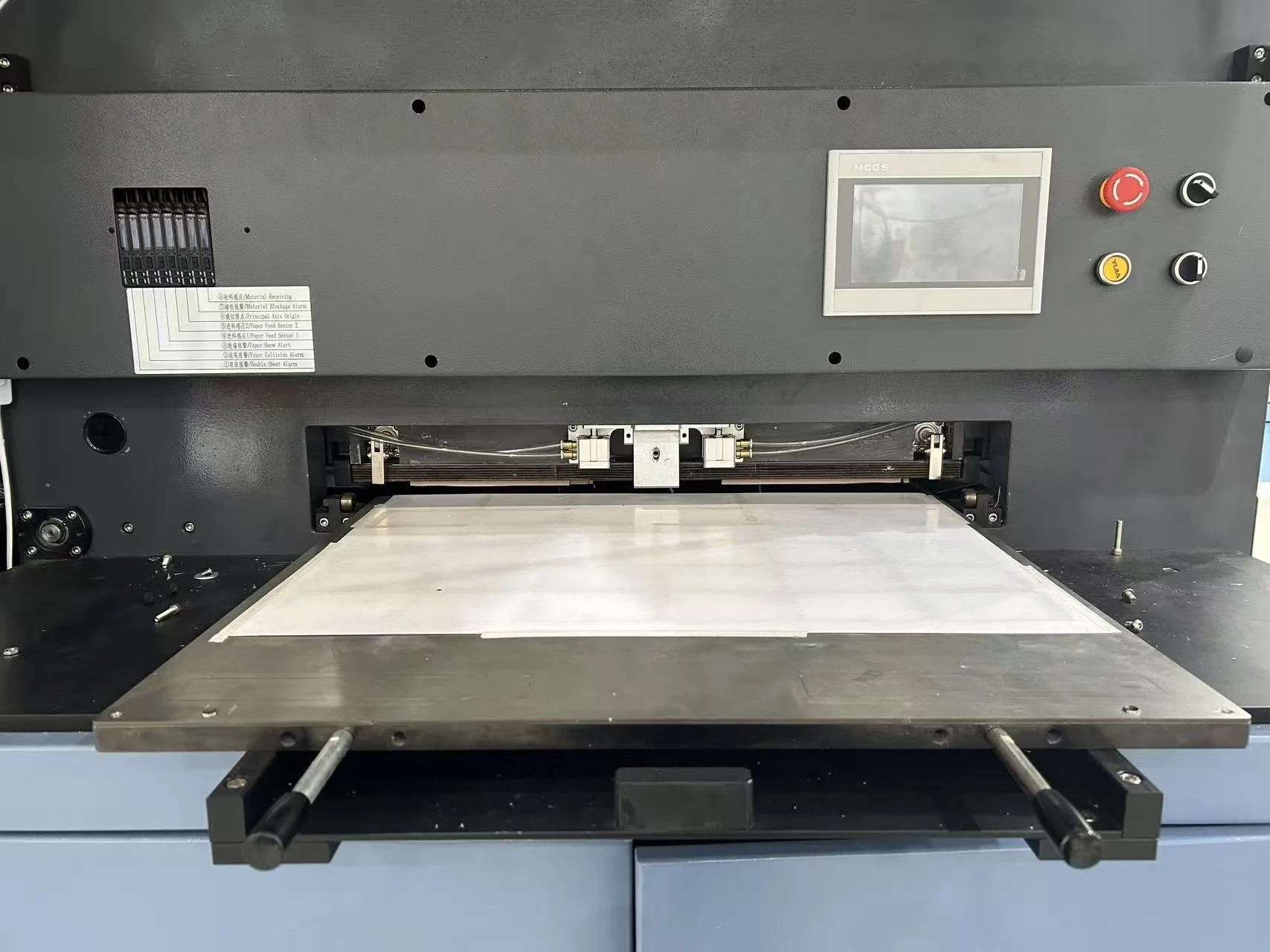

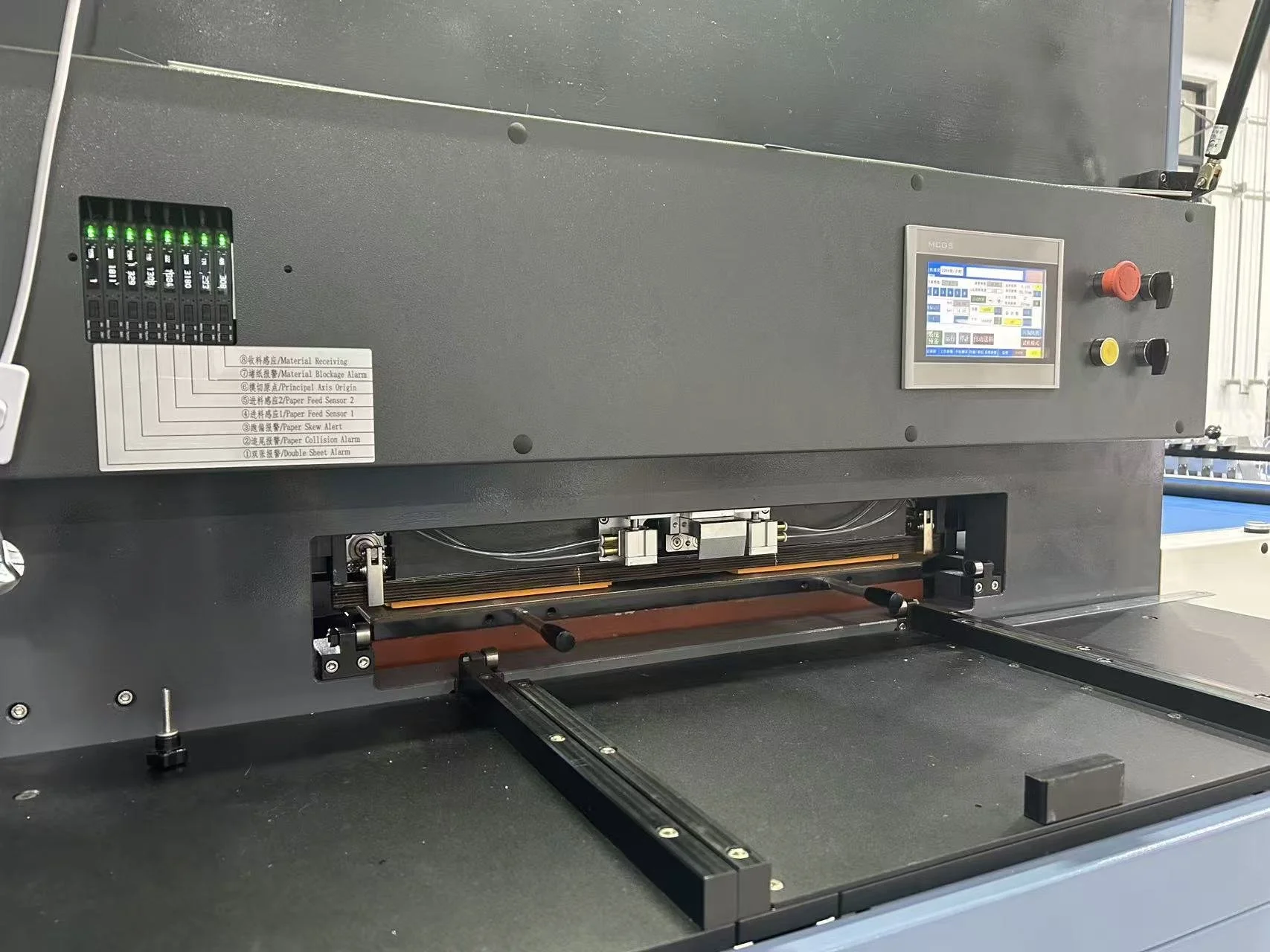

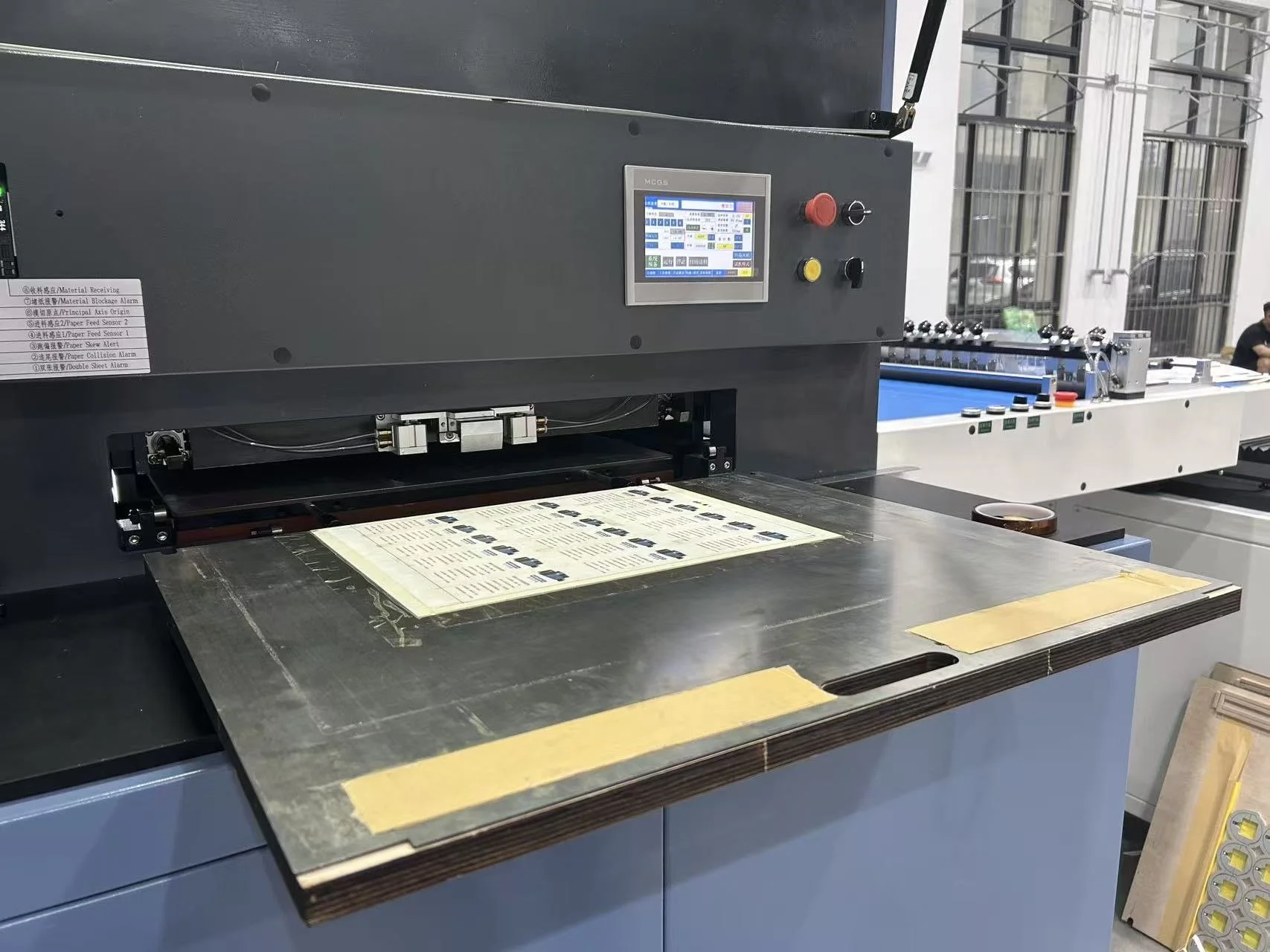

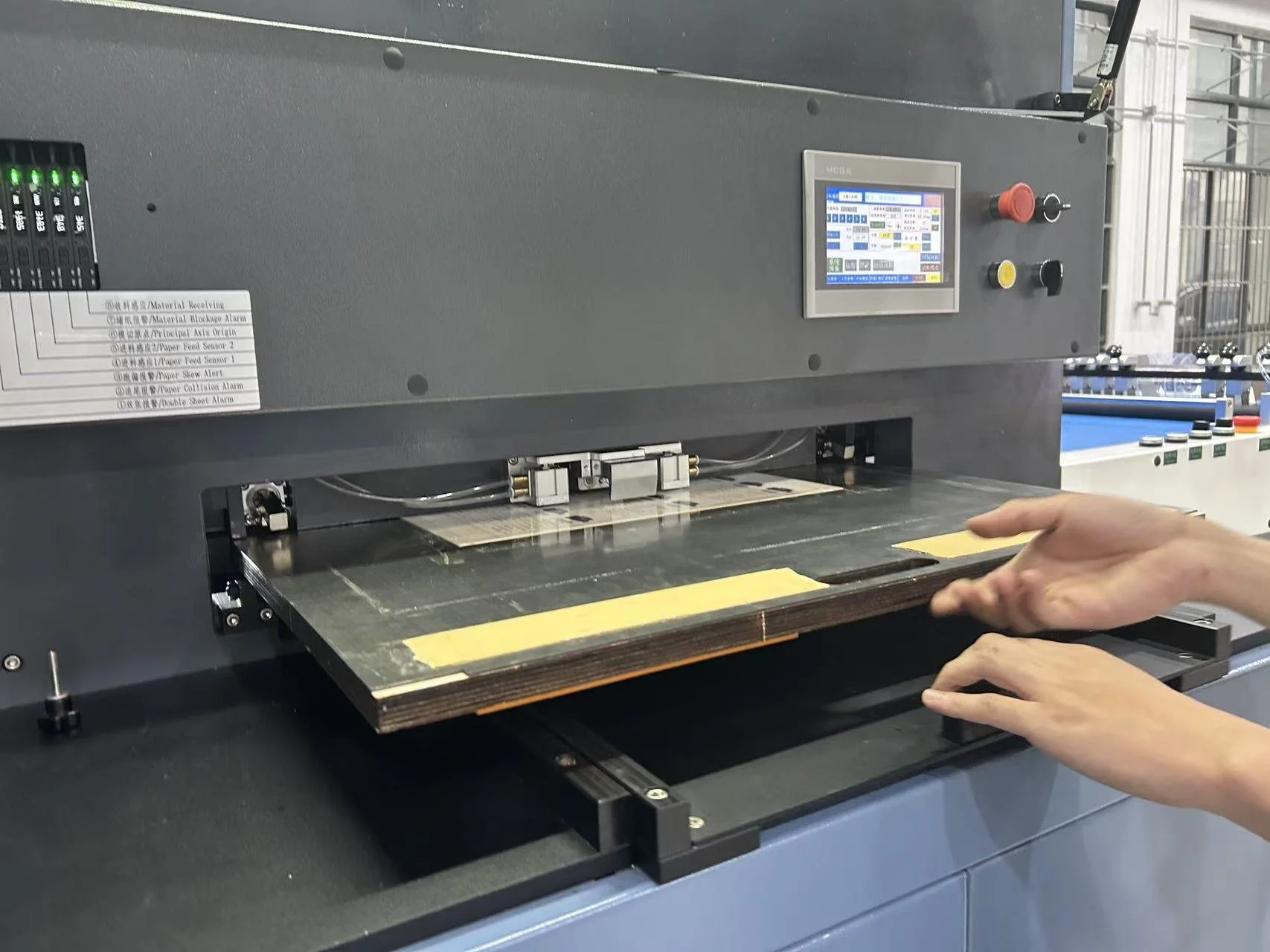

MOLD : STANDARD WOOD DIE-MOLD – NO NEED NICKS

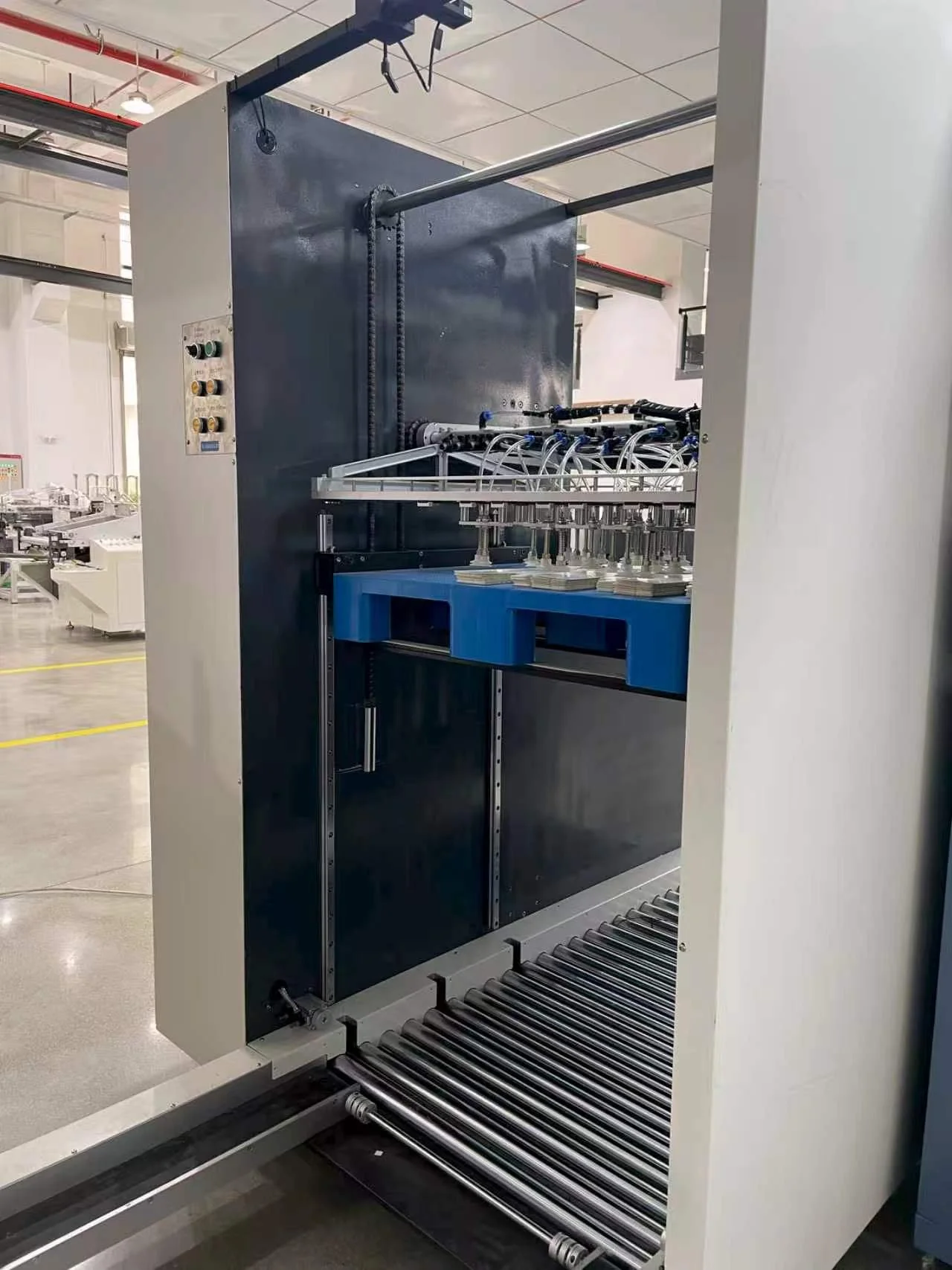

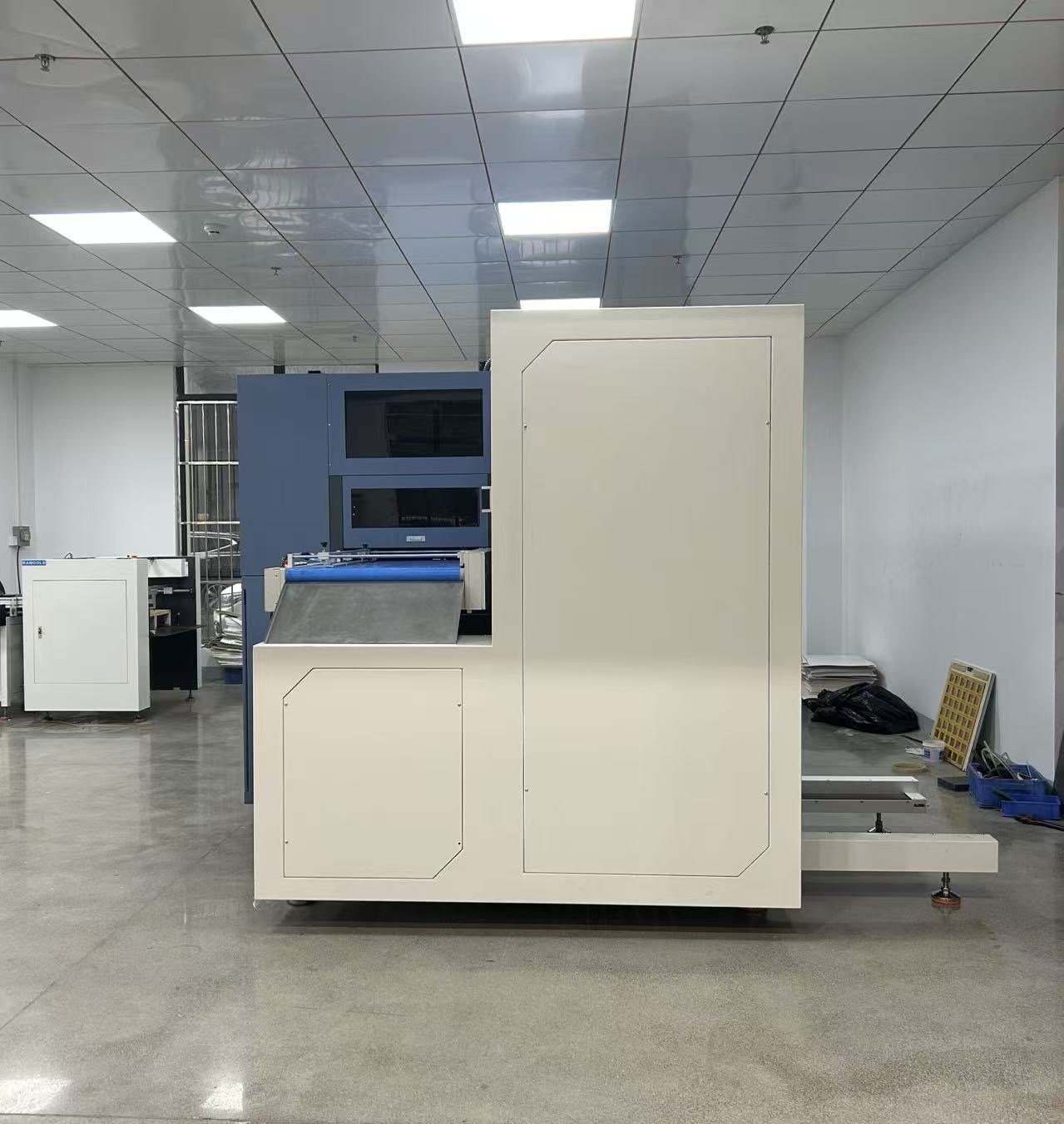

BLANKING & WASTE DISCHARGE ; YES
ONE TOUCH ADJUSTMENT
NEW JOB ADJUSTMENT: MAX 30 MIN

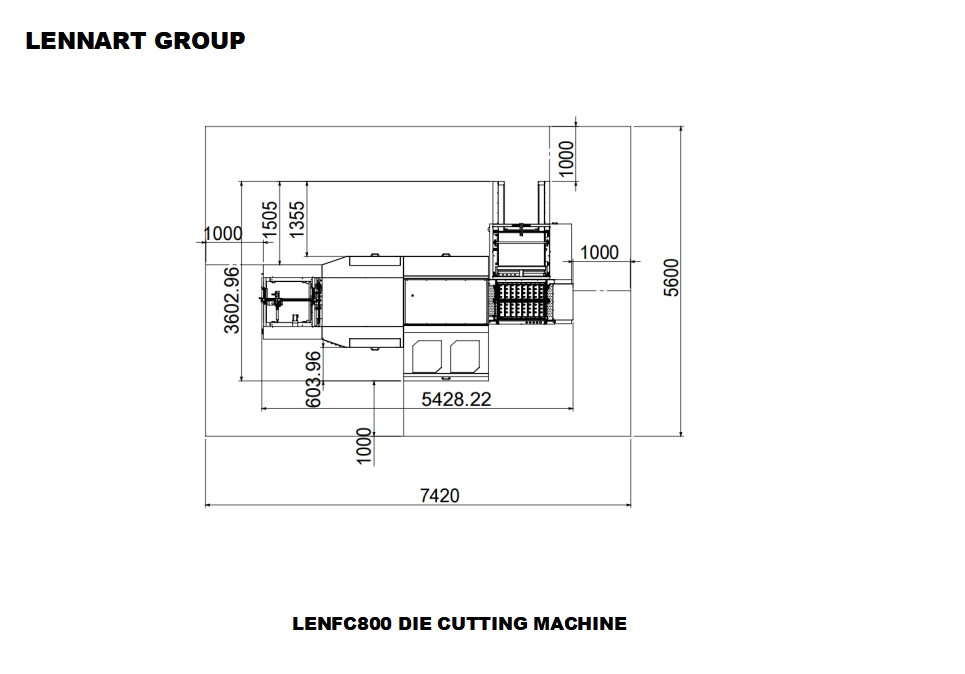

MACHINE SIZE ; 6300 MM X 1720 MM X 2100 MM
MACHINE WEIGHT : 5600 KG
POWER ; 20 KW-22 KW-3PHASE -380V
