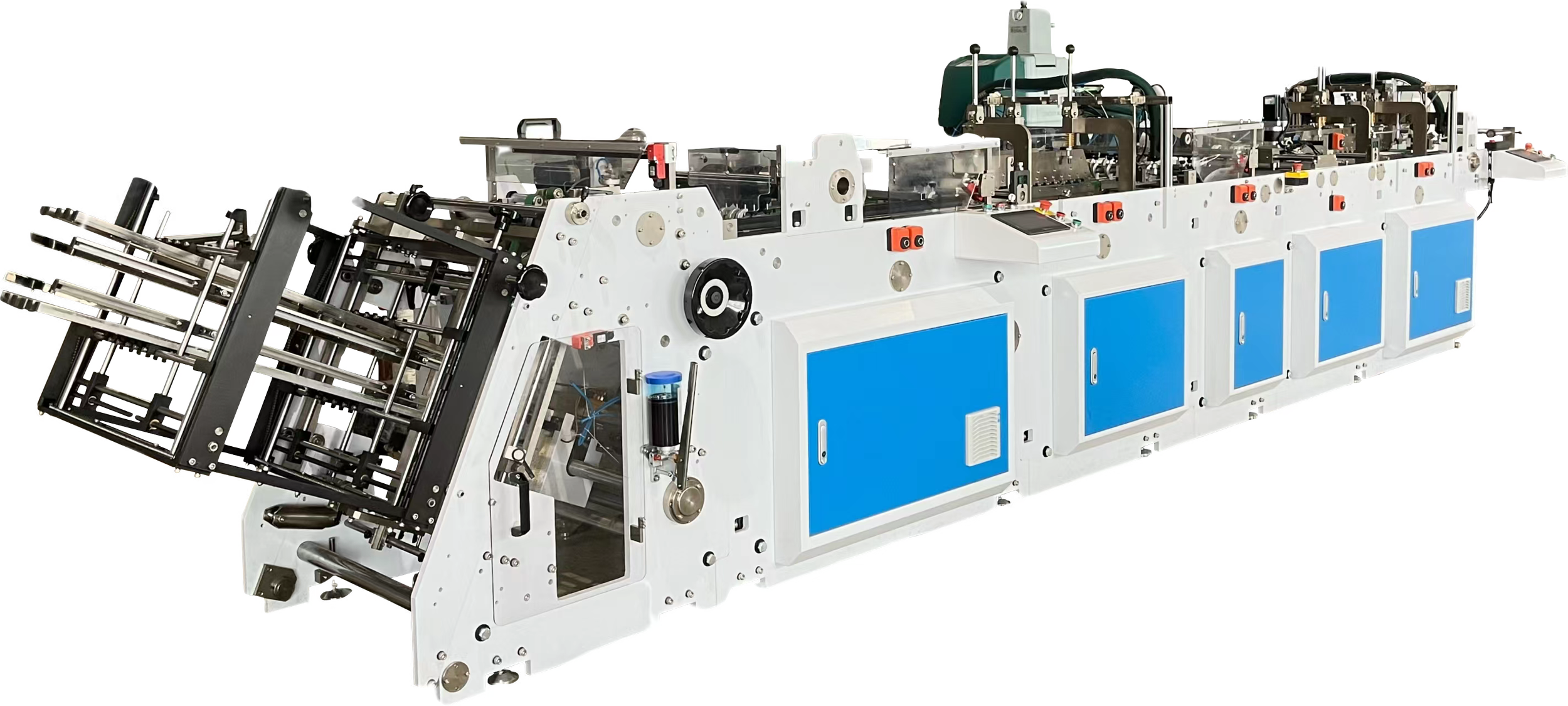

LENBOX -LD800 DOUBLE STATION BOX FORMING MACHINE

MADE FOR SUCCESS

FULLY SERVO CONTROLLED

HIGH SPEED

DOUBLE GLUING STATION ( ROBATECH HOTMELT + KQ COLD GLUE SYSTEMS )

BUILD FOR HIGH END CUSTOMERS

LEN-LD800

Blank Length A 200-450mm

Blank Length B 200-450mm

Box Height C ≤50mm

Conicity 5°-40°

Voltage 380V/50Hz

The Total power 14KW

Max Speed 100-200pcs/min

Air pressure 0.6Mpa dry and clean compressed air

Material Paper board of 200-600gsm;

corrugated board paper with thickness≤1.5mm
